clear crash tesla 2022 2023 2024
remove it from the machine for future work on the table
you need to use a hair dryer to open the lid
first you need to unscrew the bolts and remove 2 plugs
after 5-10 minutes of warming up use flat screwdriver
very carefully connect the probes after setting the current and voltage
at the beginning it needs to be charged to 12 v
disconnect white balancing connector before charging
if you are using laboratory power supply
use Chargers:
1) ToolkitRC
2) laboratory power supply
connect the crabs + and -
at the beginning charge with small current of 0.5 amperes to 12 volts
check with multimeter that the voltage is 3 volts for each of the four banks
if after a few hours voltage remains at 3 V for each of the four banks
then you can continue charging up to 16 V and 2 amperes
solder 4 pins to vvdi prog programmer
choose a chip
write clean dump (eeprom and pflash)
make bms reset
charge
You can buy full manual
WhatsApp:
Все новости
clear crash tesla 2022 2023 2024
16v li-ion battery
6.9ah 1p4s 99wh
to clean vcfront, you need to remove 16v li-ion and connect the usual acid one instead
after that, you can clear the errors in the vcfront model 3 Y
but it's too early to install 16 v li-ion because it needs to be
1) charged
2) clear the crash
remove it from the machine for future work on the table
you need to use a hair dryer to open the lid
first you need to unscrew the bolts and remove 2 plugs
after 5-10 minutes of warming up use flat screwdriver
very carefully connect the probes after setting the current and voltage
at the beginning it needs to be charged to 12 v

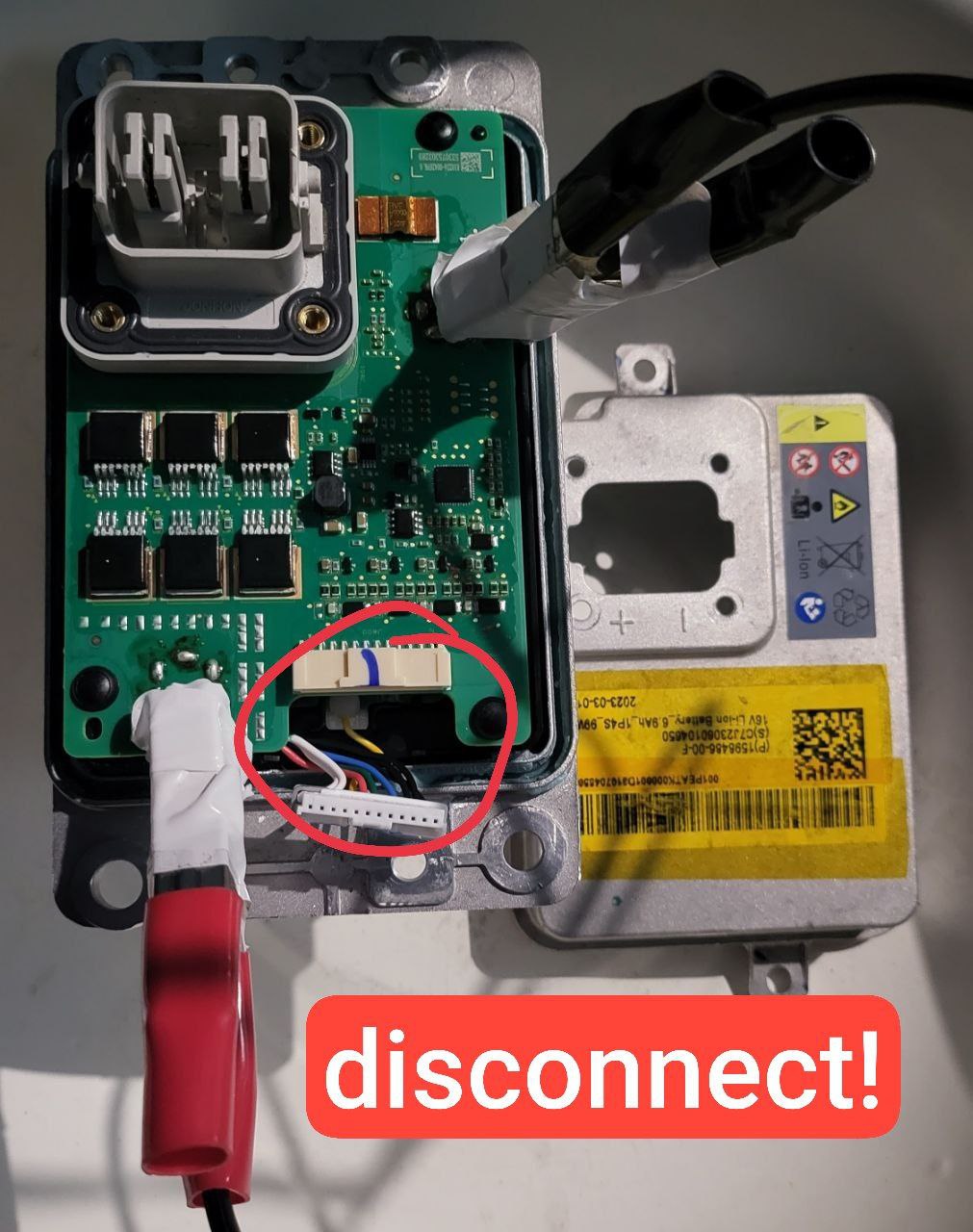

disconnect white balancing connector before charging
if you are using laboratory power supply
use Chargers:
1) ToolkitRC
2) laboratory power supply
connect the crabs + and -

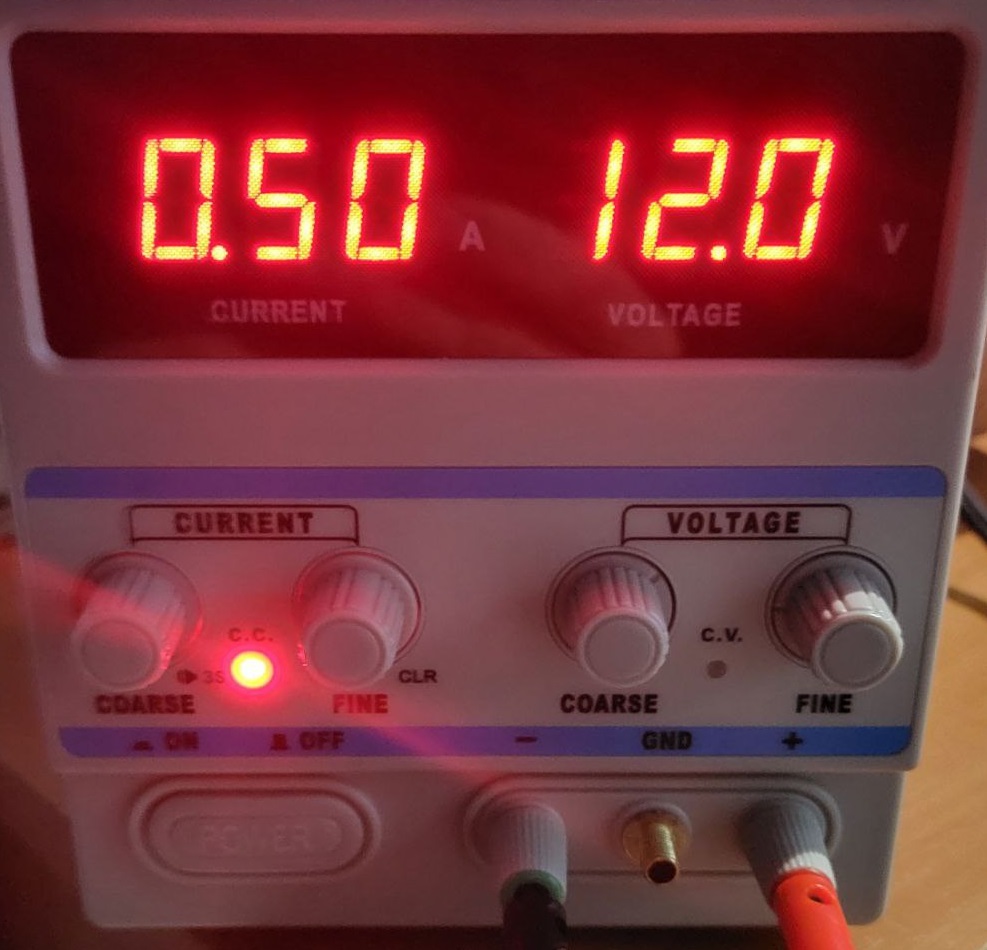

at the beginning charge with small current of 0.5 amperes to 12 volts
check with multimeter that the voltage is 3 volts for each of the four banks
if after a few hours voltage remains at 3 V for each of the four banks
then you can continue charging up to 16 V and 2 amperes
solder 4 pins to vvdi prog programmer
choose a chip
write clean dump (eeprom and pflash)
make bms reset
method without programmer
charge
1) 12 V (check each bank, need 3 V)
2) charge to 16 v

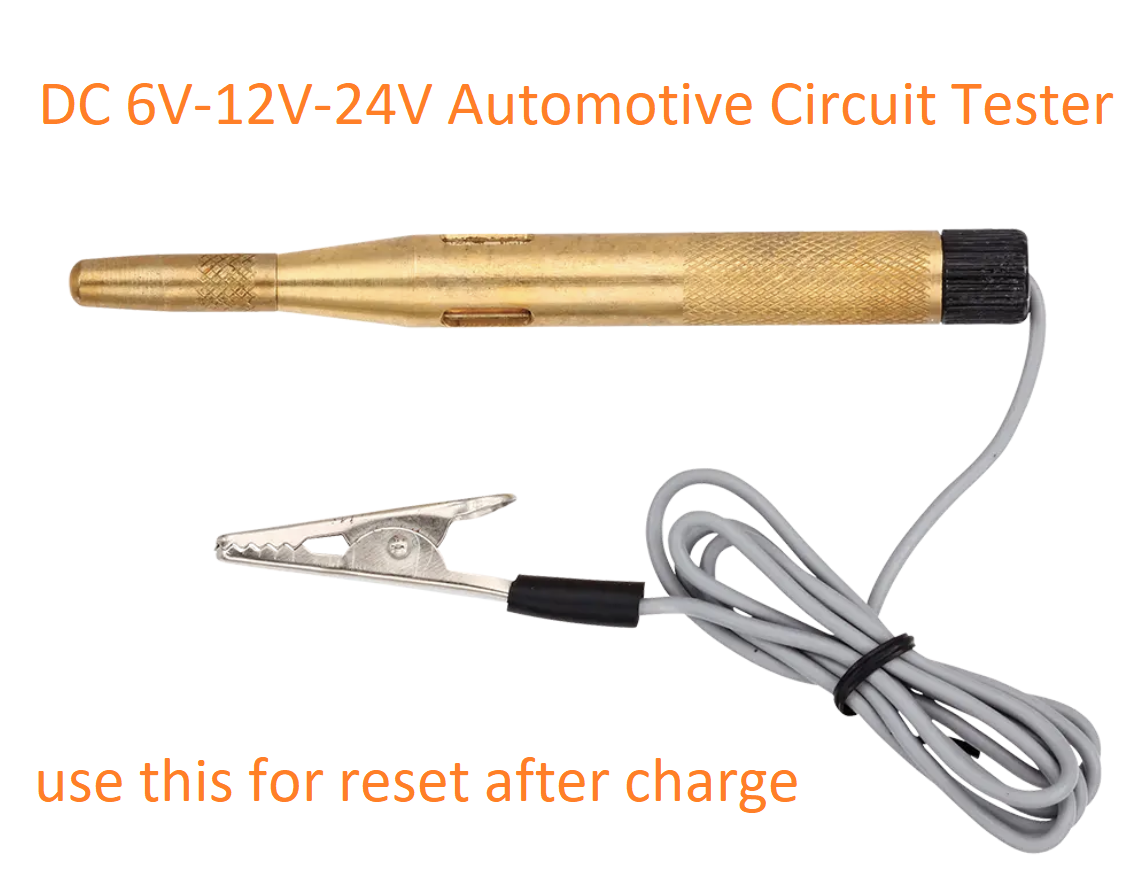

3) use DC 6V-12V-24V
Automotive Circuit Tester for bms reset
You can buy full manual
WhatsApp:
