31.12.2022
model 3 intel ryzen
connect pemicro
connect pemicro to mcu
download progppcnexus software
activate free license
enter activation code from your email
validate your software
Model 3 or model Y must have working certificates: the car must receive updates.
Otherwise, redeploy will not work and the auto will not be able to get the config from the server tesla.
buy chip mpc5748 brand new
buy pemicro fx or pemicro multilink
Need good experience in bga soldering
Open Algorithms folder
Open Mpc5748g Cflash pcp file
press upload module button (Read ful dump)
Write file name
Reading........
if after replacing mpc5748g you can read full dump without errors, then you did everything right
program module
verify modelu after writing
forget about secured config for a while
Все новости
model 3 intel ryzen
model Y intel ryzen
tesla secured config
Secured Configuration allows you to edit:
vin - VIN car number. Is needed while MCU change or donor certificates use.
carcomputer_pn, carcomputer_sn - MCU serial number. Is needed while MCU change.
Сountry - Сountry configuration change.
Is need to change the algorithm of flashing lights to Europe, rearrangement of cars for the USA market in to European
Autopilot – Change the type of autopilot, for example on FSD
SuperchargingAccess - Activation of supercharger (v1, v2)
Performance Package - Activation of Performance or Acceleration Boost depending on the type of motors
Connectivity Package - Activation of Premium Connectivity
Softranger- Soft limit Removal of the battery capacity on the car where it is available
Immersive Audio - Activation of the audio system add-ons
carcomputer_pn, carcomputer_sn - MCU serial number. Is needed while MCU change.
Сountry - Сountry configuration change.
Is need to change the algorithm of flashing lights to Europe, rearrangement of cars for the USA market in to European
Autopilot – Change the type of autopilot, for example on FSD
SuperchargingAccess - Activation of supercharger (v1, v2)
Performance Package - Activation of Performance or Acceleration Boost depending on the type of motors
Connectivity Package - Activation of Premium Connectivity
Softranger- Soft limit Removal of the battery capacity on the car where it is available
Immersive Audio - Activation of the audio system add-ons
you need to buy ONE of these programmer:
Pemicro universal or pemicro fx buy
motorolla SPC 5748g chip
This gateway chip is on the back side MCU2Tesla closed JTAG on model 3 Y 2020 2021+
Replace Mpc5748g chip with a new one
after changing, jtag port will be open again

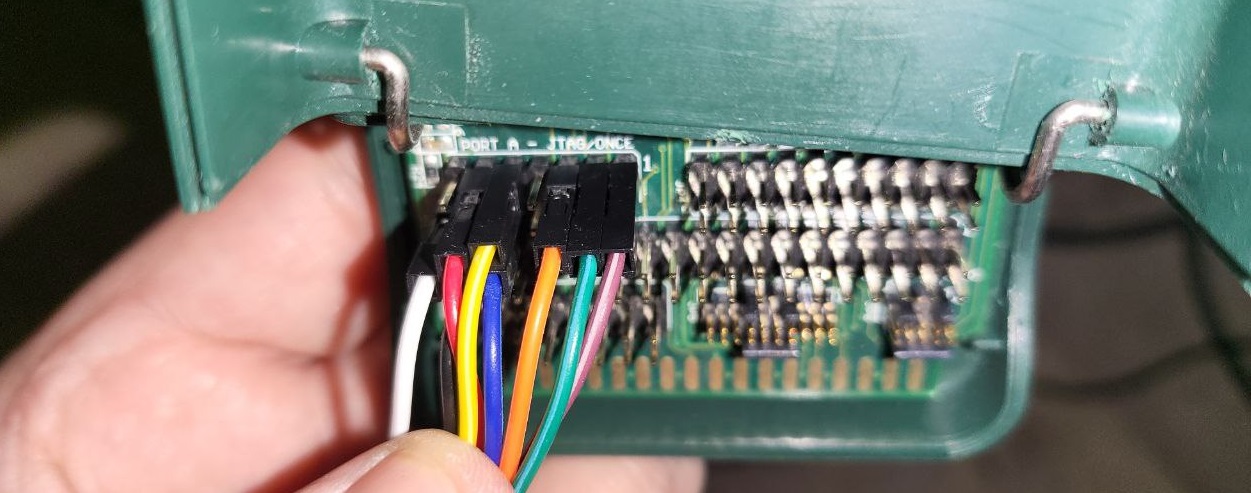

connect pemicro
connect pemicro to mcu
Register on pemicro site with your email
download progppcnexus software

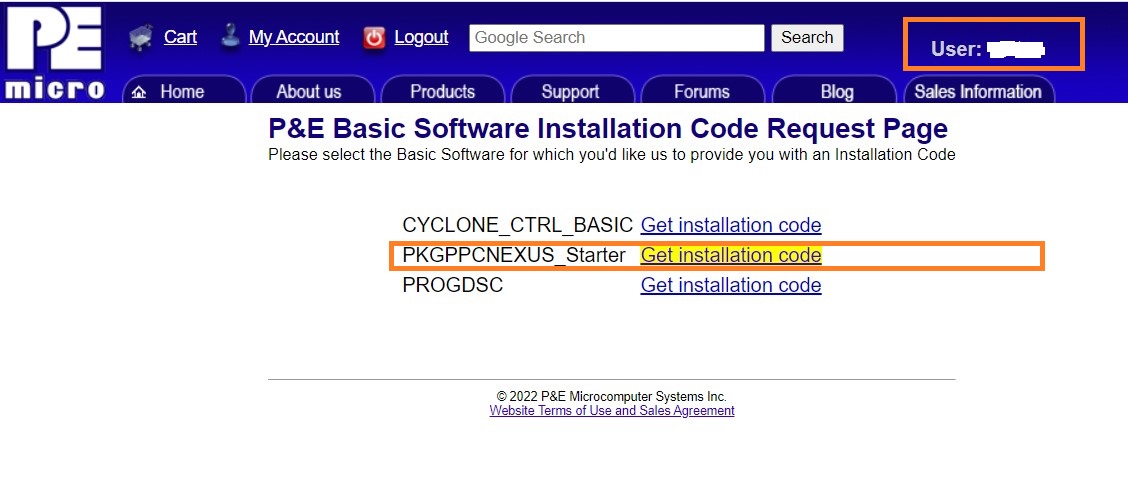

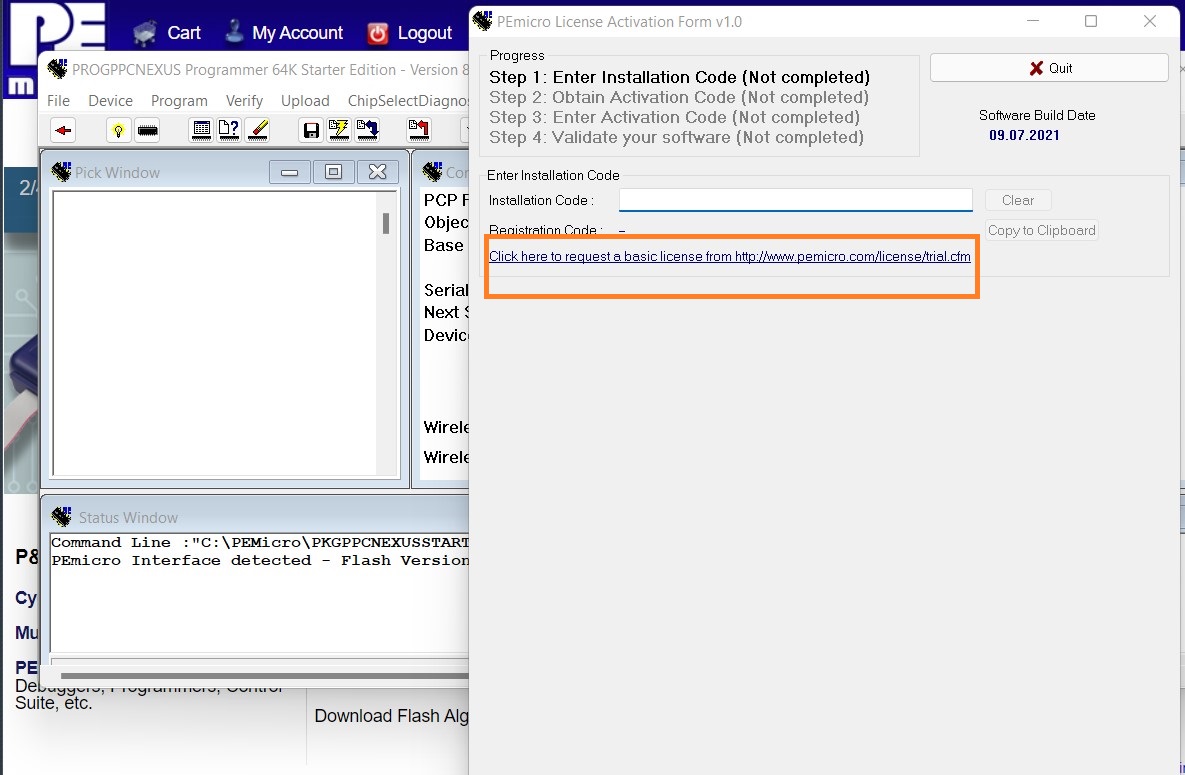

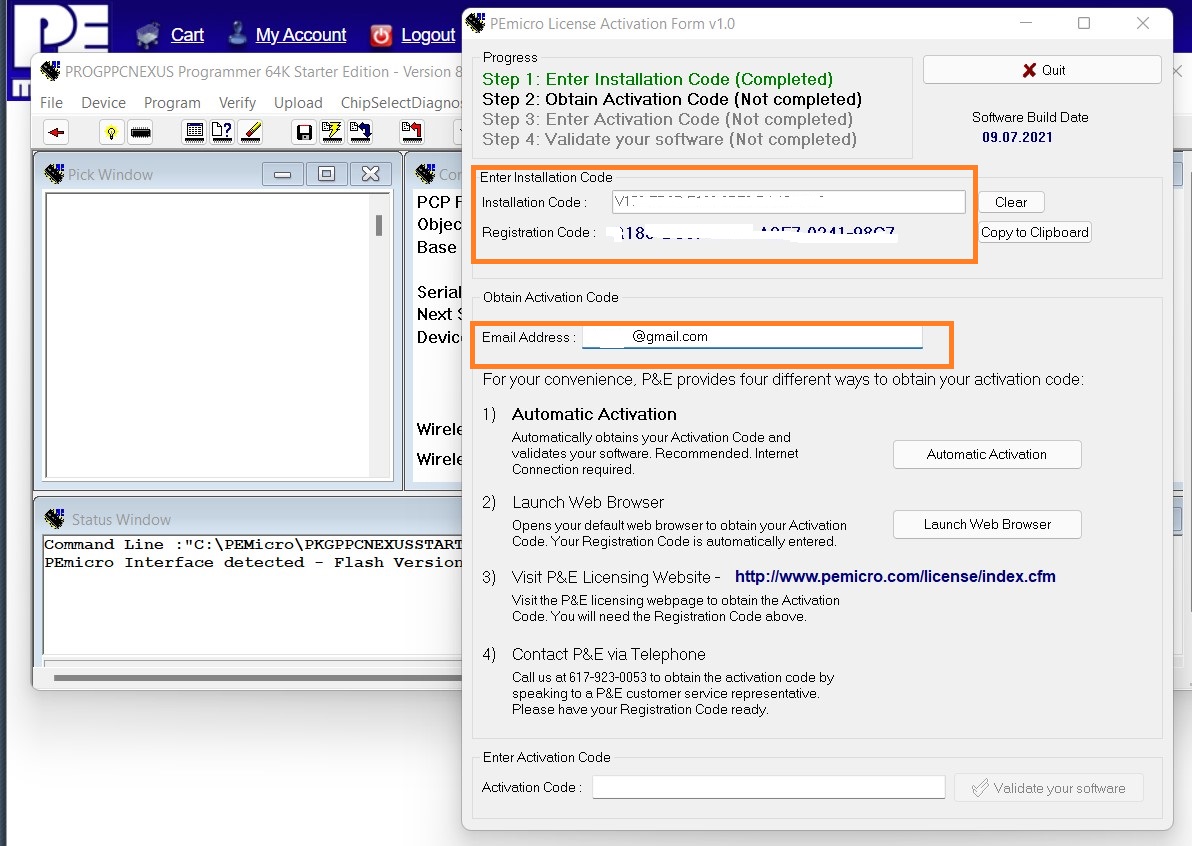

activate free license

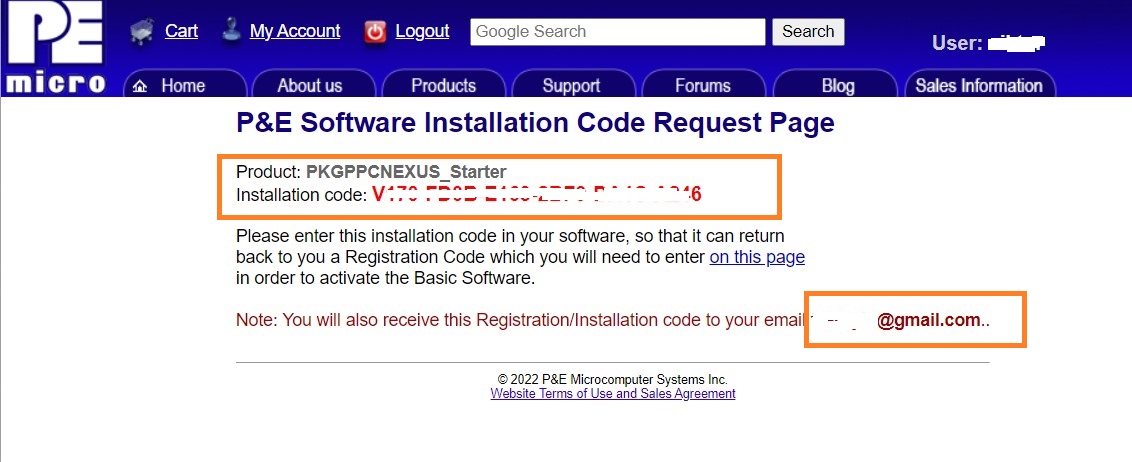

enter activation code from your email
validate your software
Requirement:
Model 3 or model Y must have working certificates: the car must receive updates.
Otherwise, redeploy will not work and the auto will not be able to get the config from the server tesla.
buy chip mpc5748 brand new
buy pemicro fx or pemicro multilink
Need good experience in bga soldering
Open Algorithms folder
Open Mpc5748g Cflash pcp file

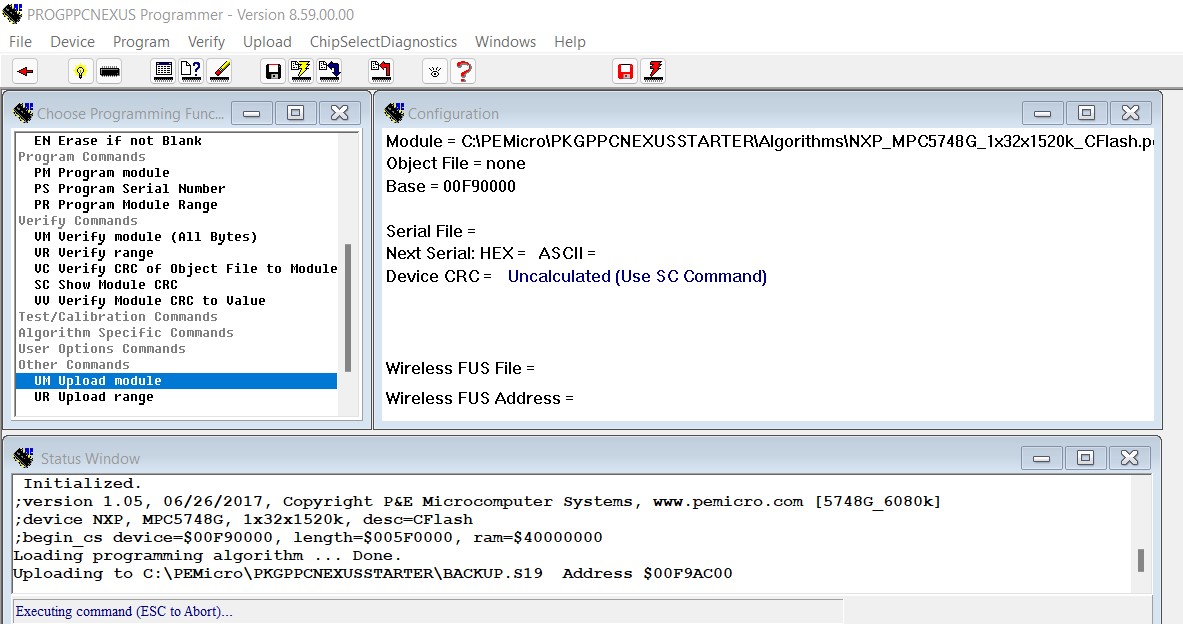

press upload module button (Read ful dump)
Write file name
Reading........
if after replacing mpc5748g you can read full dump without errors, then you did everything right

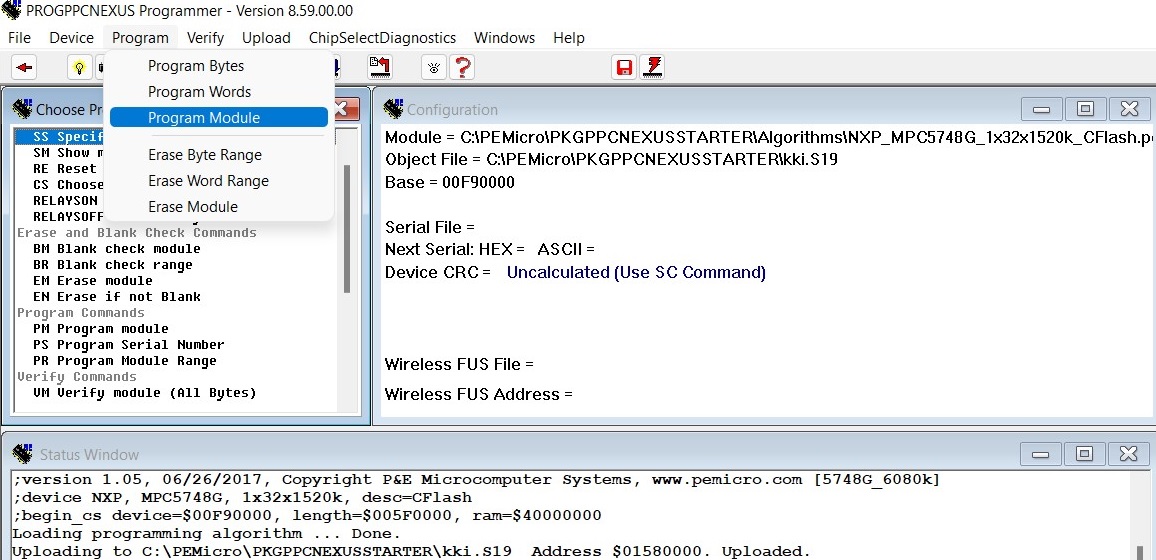

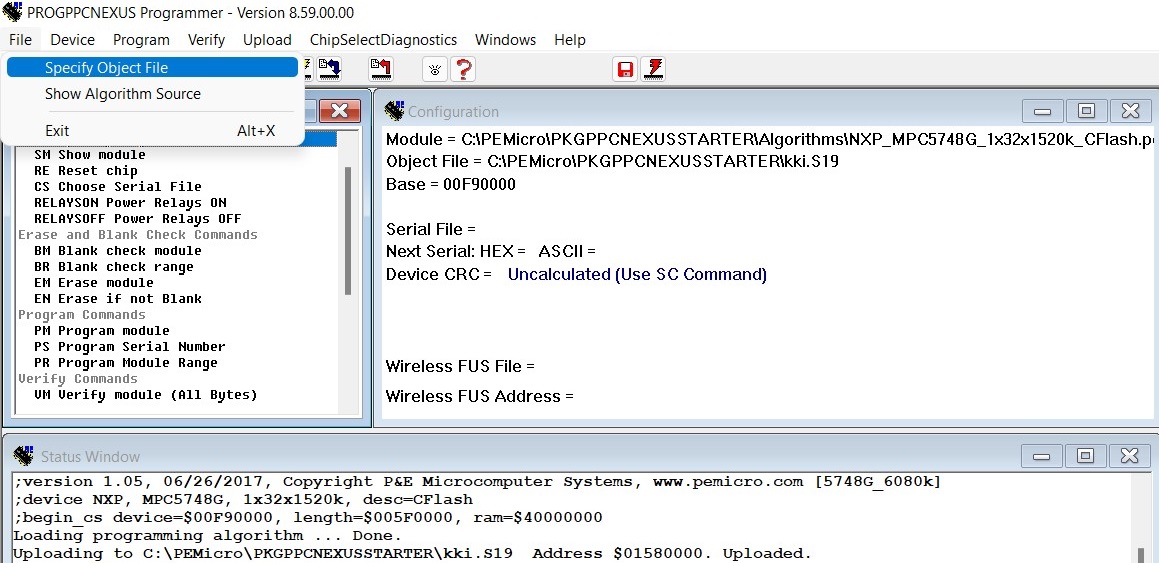

program module

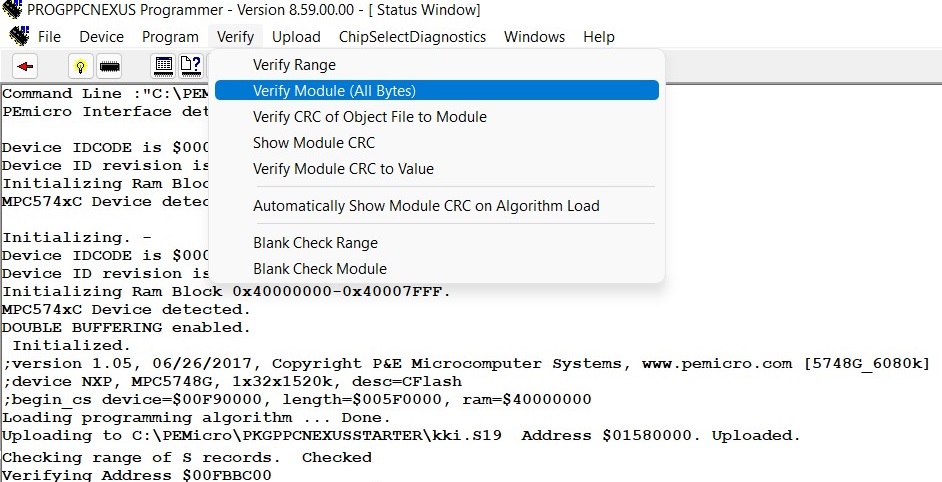

verify modelu after writing
forget about secured config for a while
secured config can't be done by replacing gataway chip
wait for a new solution can bus
using a device on can bus it will be possible
activate supercharge if Tesla disabled it
