tesla factory mode model s x
For tegra only 2012-02.2018
activate factory mode for toolbox 2.1
Without activating Factory Mode, you cannot do anything in the program
Exit Factory Mode on the car screen with the button at the top
Factory Mode does not crash when the car is restarted
model s x Before RESTYLING
before entering factory mode, use the LAN port behind the small screen
after entering the factory mode, use the LAN port to the left of the driver's door
model s x RESTYLING
before entering the factory mode use the LAN port behind the small screen
after entering the factory mode use the LAN port on the bottom of the MCU
You need to remove the instrument cluster:
Tesla ethernet diagnostic cable fakra
Connect the Fakra network cableSharing
to the laptop
Configure the network address of the wired adapter adapter,
you need to register the ip address 192.168.90.101 and the mask 255.255.255.0
Go to the Network Center
Change adapter parameters
Right-click the properties
enter ip address 192.168.90.101 and mask 255.255.255.0
OK button
Download and install Git Bash
https://git-scm.com/download/win
Run Git Bash and check Ping 192.168.90.100
ip address 192.168.90.100 should ping
after the ping is successful, you can run the commands
copy and paste right-click into the Git Bash program
1 developer
curl -vX POST http://192.168.90.100:4070//_data_set_value_request_ -d '{"name": "GUI_developerMode", "value": "true"}' - header "Content-Type: application / json" -A "ModelS / 1.0"}
2 command future config
curl -vX POST http://192.168.90.100:4070//_data_set_value_request_ -d '{"name": "GUI_featureConfig", "value": ""} '--header "Content-Type: application / json" -A "ModelS / 1.0"}
3 Factory mode command
curl -vX POST http://192.168.90.100:4070//_data_set_value_request_ -d '{"name": "GUI_factoryMode", "value": "true"}' --header "Content-Type: application / json" -A "ModelS / 1.0"}
The command may not work the first time
try different commands sequence
example of the command Gui Future config

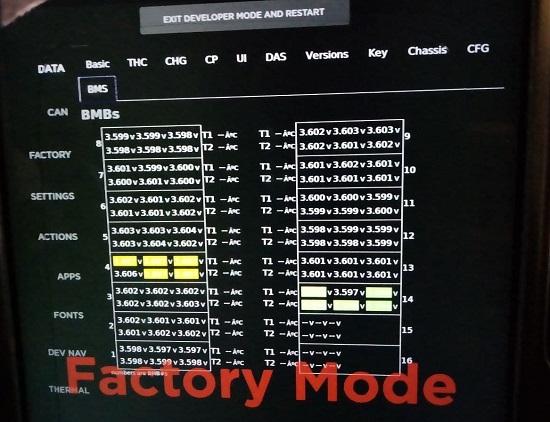

After successfully entering the factory, you can assemble IC Cluster and use an additional lan
also go back to the settings of the network adapter and set the default ip address and mask to the default
model before restyling (to the left of the driver door),
this interface works only after activating the factory
restyle model (under the cap of the large screen,
this interface works only after activating the factory

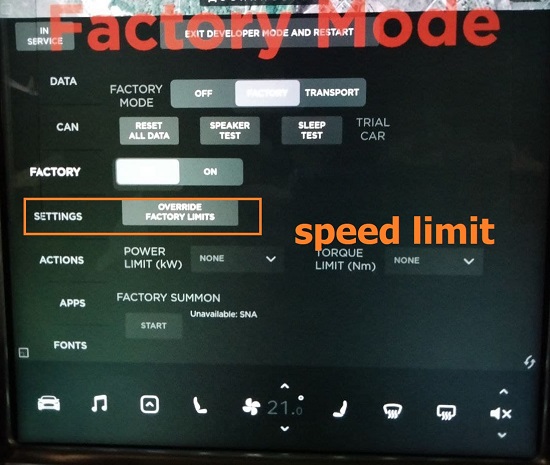

disable speed limit
